Geometry Adjustments
Geometry adjustments change the position, size, rotation, or skew of repeated objects. They use intensity sources to vary the result across the repeater. For example, scale objects according to the image beneath them to create a halftone. See Repeater Intensity for details.
The Repeater panel provides these common adjustments:
- Scaling - Choose a scaling intensity mode, preset, or style.
- Scale Min and Scale Max - Set the minimum and maximum scaling amounts used by the selected Scaling scheme.
- Rotation - Enable random rotation and set its maximum amount. This control supports only randomized rotation intensity.
For all adjustment options, click
in the panel to open Repeater Style, then use Adjust Geometry.
Since version 1.4, you can combine multiple geometry adjustments and control each one’s contribution with Amount.

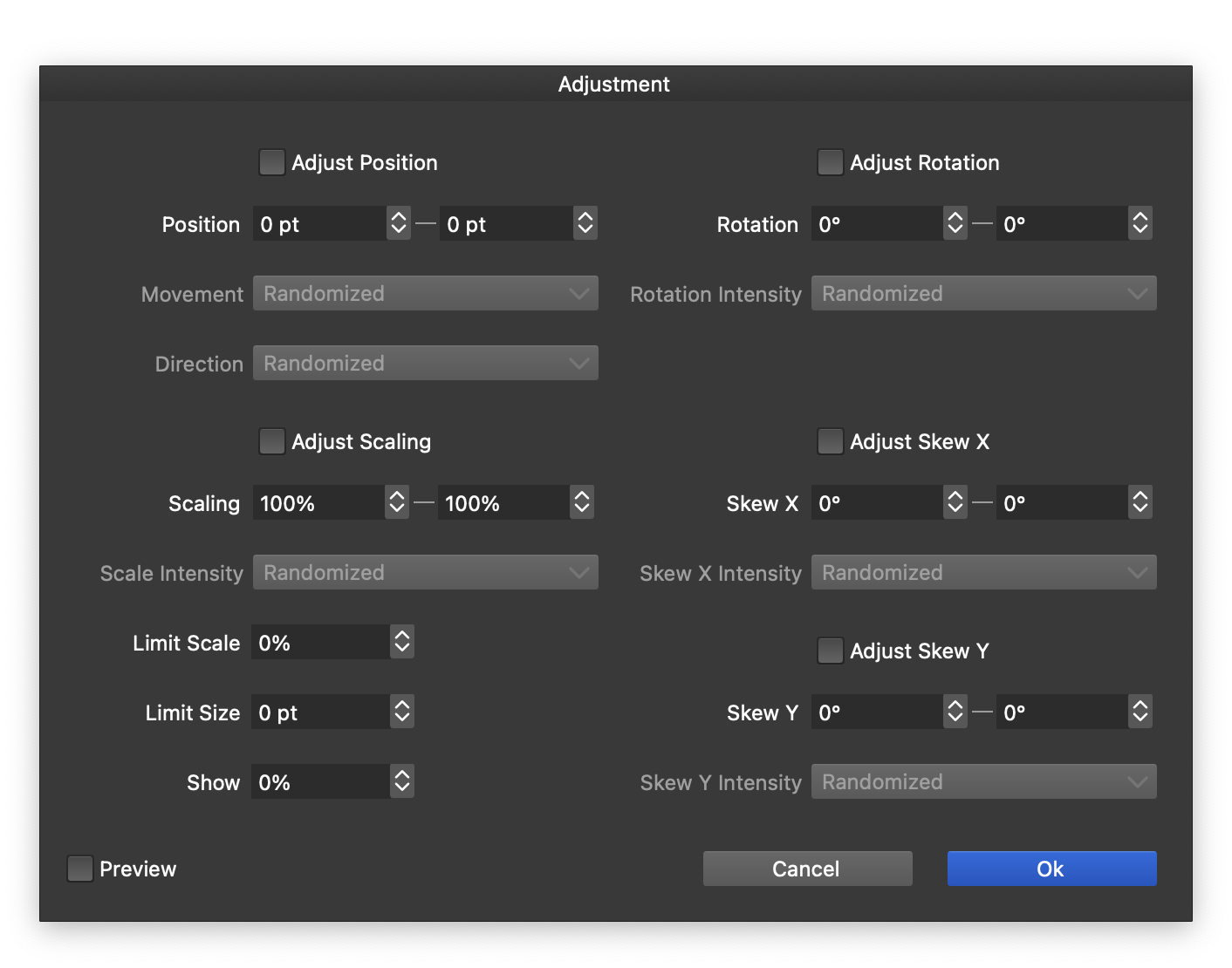

Geometry adjustment options.
- Adjustments - Choose an adjustment to edit, or add or remove adjustments.
- Adjustment - Save or reuse adjustment presets and styles.
- Amount - Set this adjustment’s contribution when combining adjustments.
- Adjust Positions - Enable position adjustments.
- Position - Set minimum and maximum movement distances.
- Movement - Choose the intensity controlling movement radius.
- Direction - Choose the intensity controlling movement direction.
- Adjust Scaling - Enable size adjustments.
- Scaling - Set minimum and maximum scaling amounts.
- Scaling Intensity - Choose the intensity controlling scaling.
- Adjust Rotation - Enable rotation adjustments.
- Rotation - Set minimum and maximum rotation amounts.
- Rotation Intensity - Choose the intensity controlling rotation.
- Adjust Skew X/Y - Enable horizontal or vertical skew adjustments.
- Skew X/Y - Set horizontal or vertical skew amounts.
- Skew X/Y Intensity - Choose or edit the intensity scheme controlling skew.
